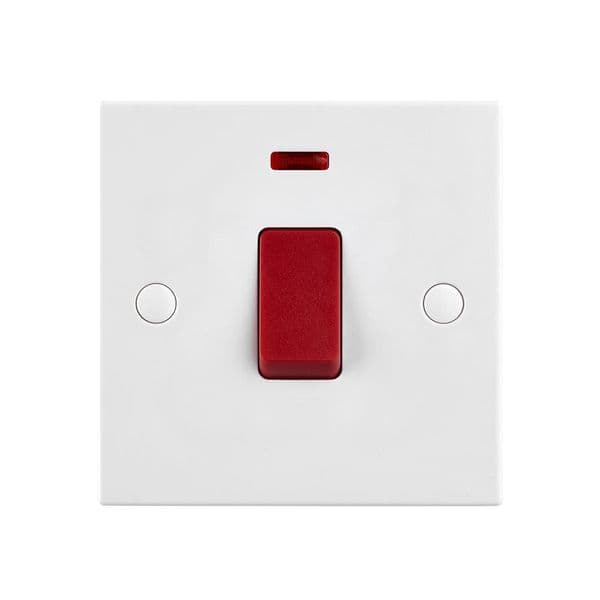

Square Edge 45A 1G DP Switch with Neon

• Our 45A rated switch boasts captive screws which provide for quick, easy and a hassle free installation
• Supplied with fixing screws & white screw covers for sleek appearance
• Double pole switching for the peace of mind of a safer installation of your socket
• Twin earth fitted as standard to allow a double earth facility for installations that require a high integrity protective connection
• Flush neon power indicator on faceplate
• This has been manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
• We recommend a minimum mounting box depth of 47mm
• Certified to IEC/BS EN60669

• Colour Finish:

  White

  Captive Terminal Screw:

  YES

  Fixing Screws Supplied:

  YES

  Minimum Box Depth (mm):

  35

  Terminal Capacity (mm):

  16²*1/ 6²*2/ 4²*3/ 2.5²*4

  Number of Earth Terminals:

  2

  Screw Caps:

  INCLUDED

  IP Rating:

  20

  Switch Type:

  DOUBLE POLE

  Anti-Microbial Property:

  YES

  Operating Voltage:

  250V 50Hz

  Anti-Fingerprint Lacquer:

  YES

  Commodity Code:

  8536508090

  Country Of Origin:

  China
