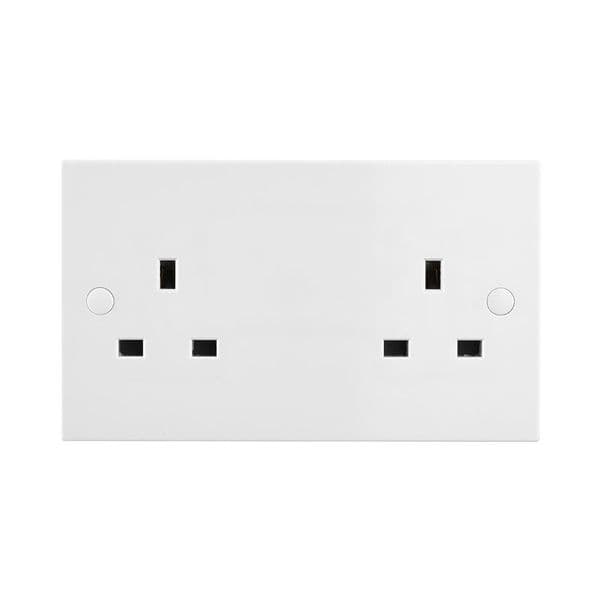

Square Edge 13A 2G SP Unswitched Socket

• Our 13A rated socket boasts angled in-line terminals with captive screws which provide for quick and easy access and a hassle free installation
• Supplied with fixing screws & white screw covers for sleek appearance
• Twin earth fitted as standard to allow a double earth facility for installations that require a high integrity protective connection
• This has been manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
• We recommend a minimum mounting box depth of 25mm
• Certified to BS1363-2

• Colour Finish:

  White

  Captive Terminal Screw:

  YES

  Fixing Screws Supplied:

  YES

  Minimum Box Depth (mm):

  25

  Terminal Capacity (mm):

  6²*1/ 4²*3/ 2.5²*4

  Number of Earth Terminals:

  2

  Screw Caps:

  INCLUDED

  Socket Type:

  2G UK 13A

  IP Rating:

  20

  Anti-Microbial Property:

  YES

  Operating Voltage:

  250V 50Hz

  Anti-Fingerprint Lacquer:

  YES

  Commodity Code:

  8536699085

  Country Of Origin:

  China
