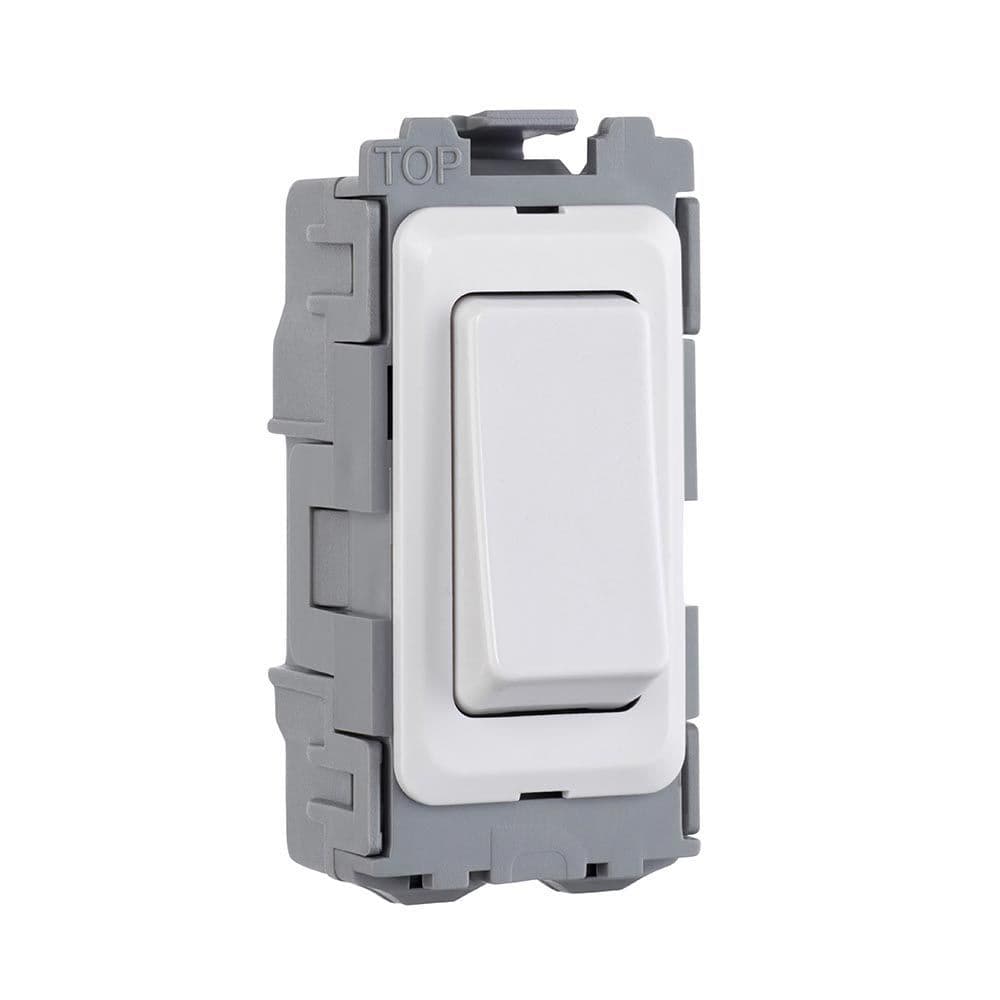

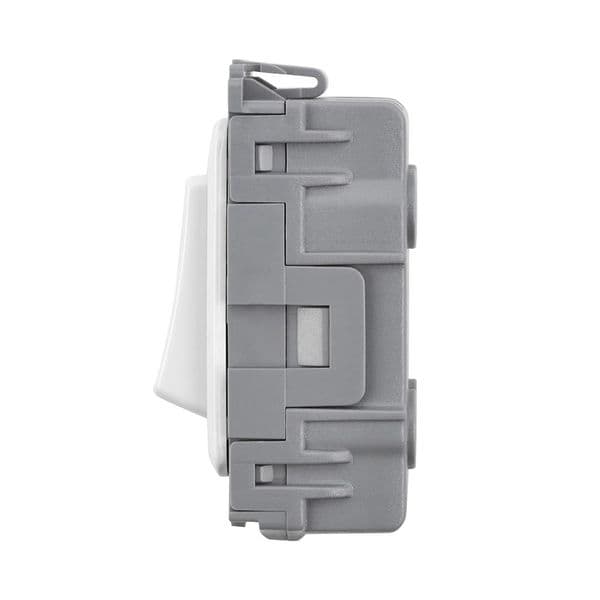

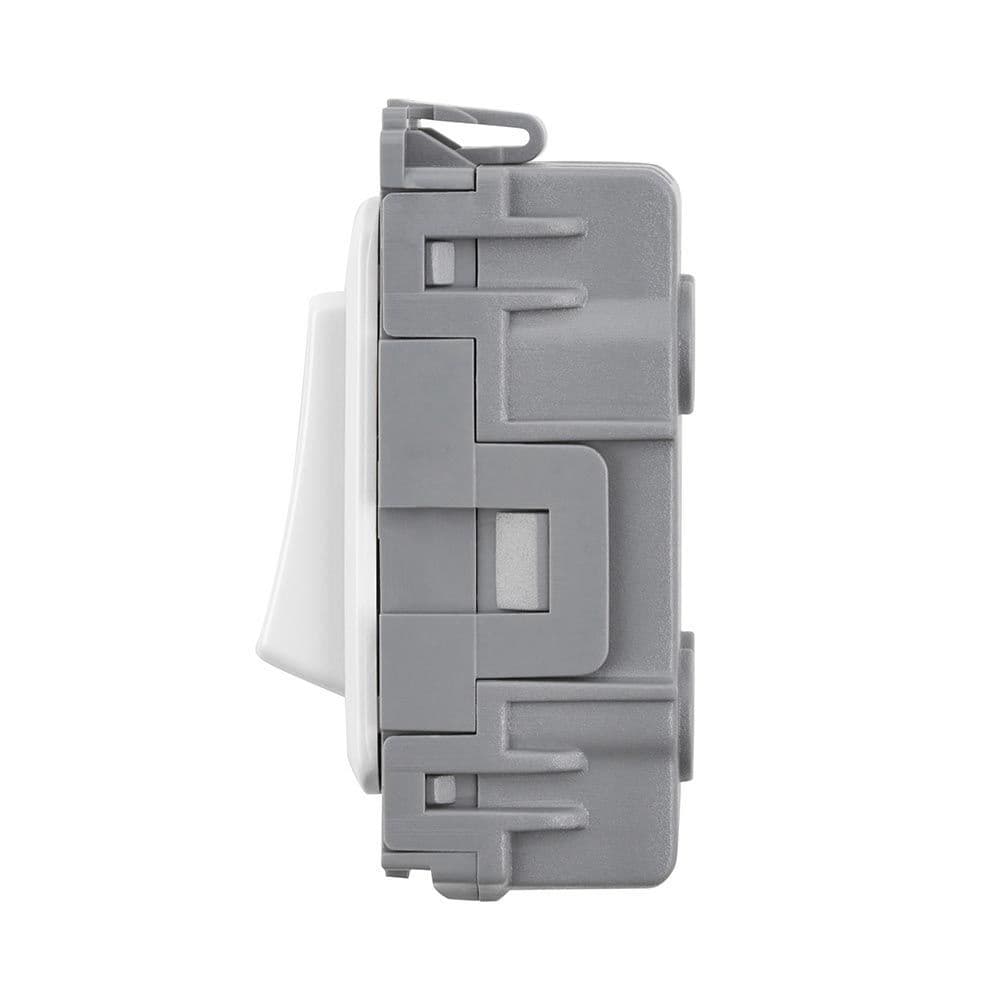

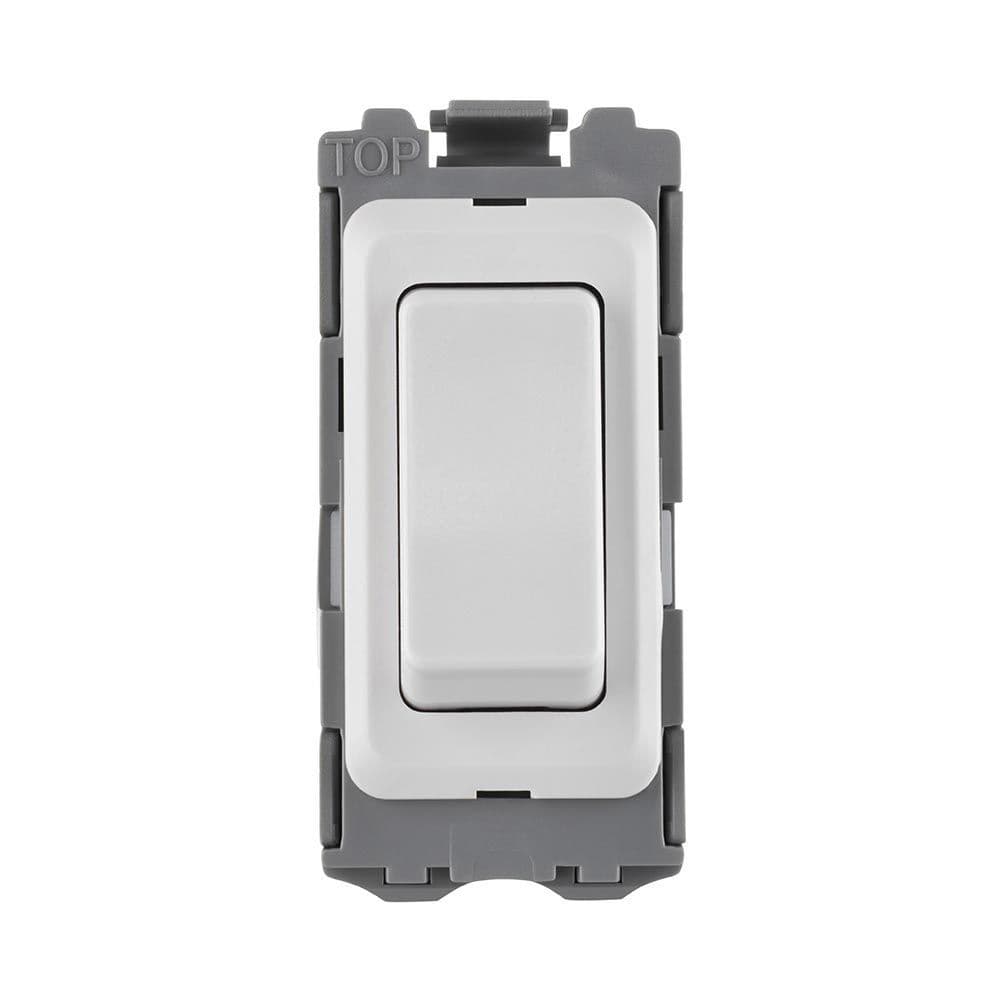

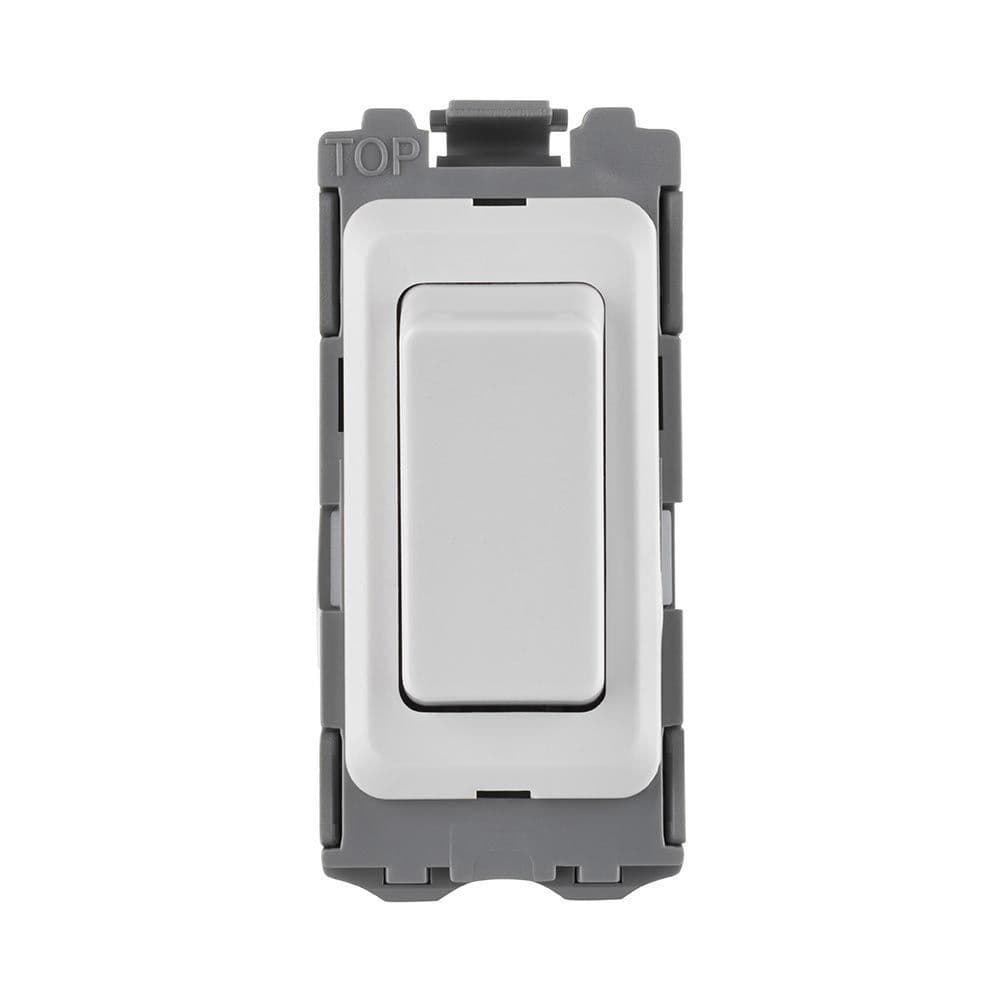

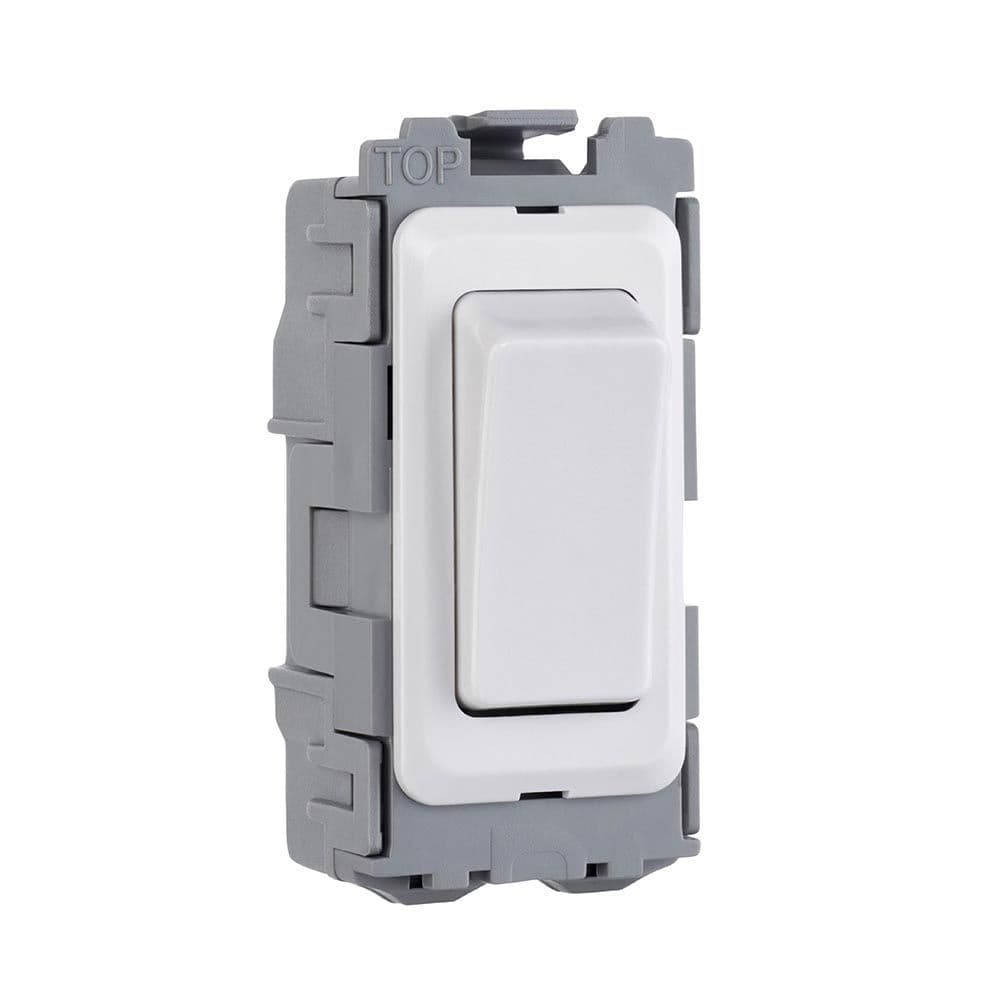

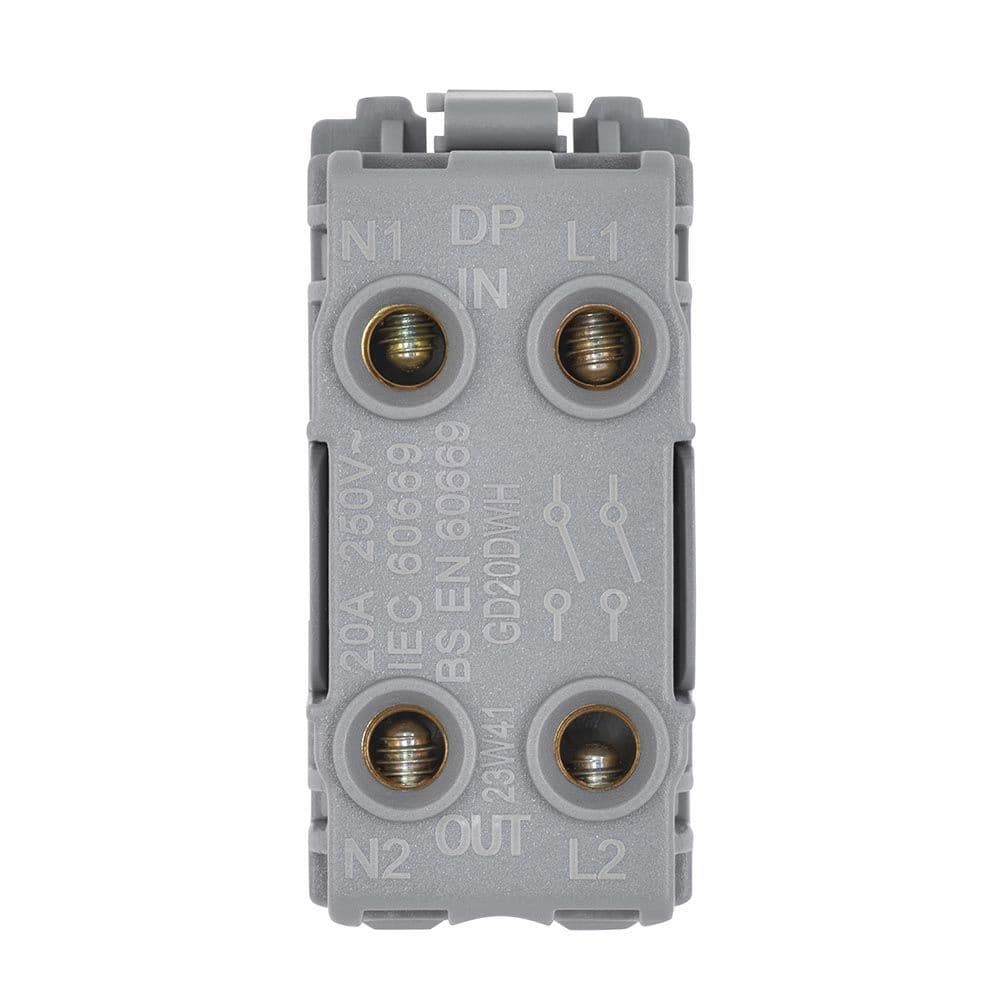

Grid 20A DP 2-Way Grid Switch Module - White

• This module is rated to 20A
• Easily clips into any Saxby Electrical grid plates with the snap lock design
• 2 way switching allows for a secondary switch position in the circuit
• Double pole switching for the peace of mind of a safer installation
• Other colour finishes available
• We recommend a minimum mounting box depth of 25mm
• Certified to IEC/BS EN60669

• Colour Finish:

  White

  Captive Terminal Screw:

  YES

  Fixing Screws Supplied:

  NO

  Minimum Box Depth (mm):

  25

  Screw Caps:

  NO

  Anti-Microbial Property:

  YES

  Operating Voltage:

  250V 50Hz

  Anti-Fingerprint Lacquer:

  YES

  Commodity Code:

  8536303099

  Country Of Origin:

  China

• Unpacked Height (mm):

  54

  Unpacked Width (mm):

  24.8

  Unpacked Depth (mm):

  22.2
